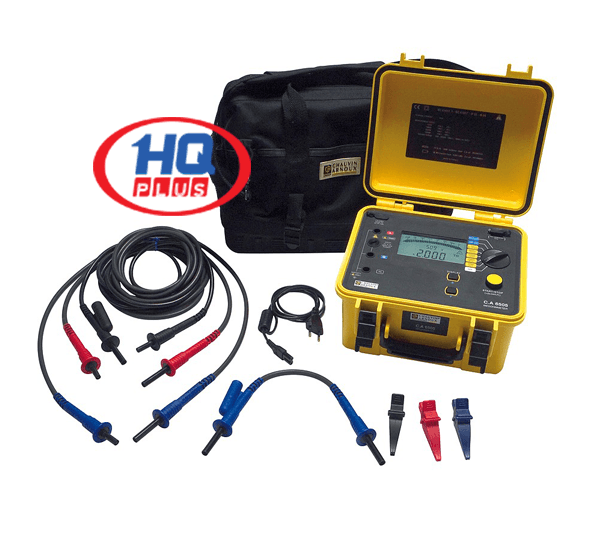

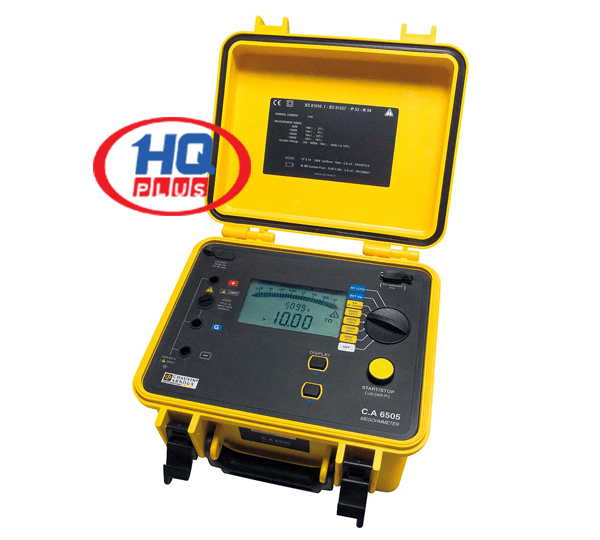

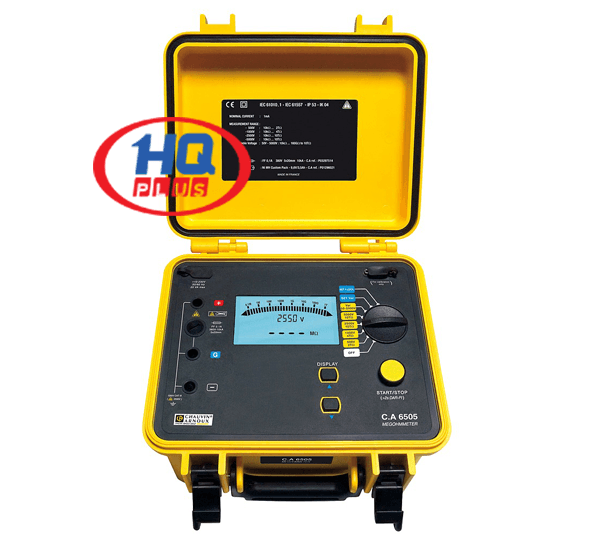

Insulation Tester HV 5kV Model C.A 6505

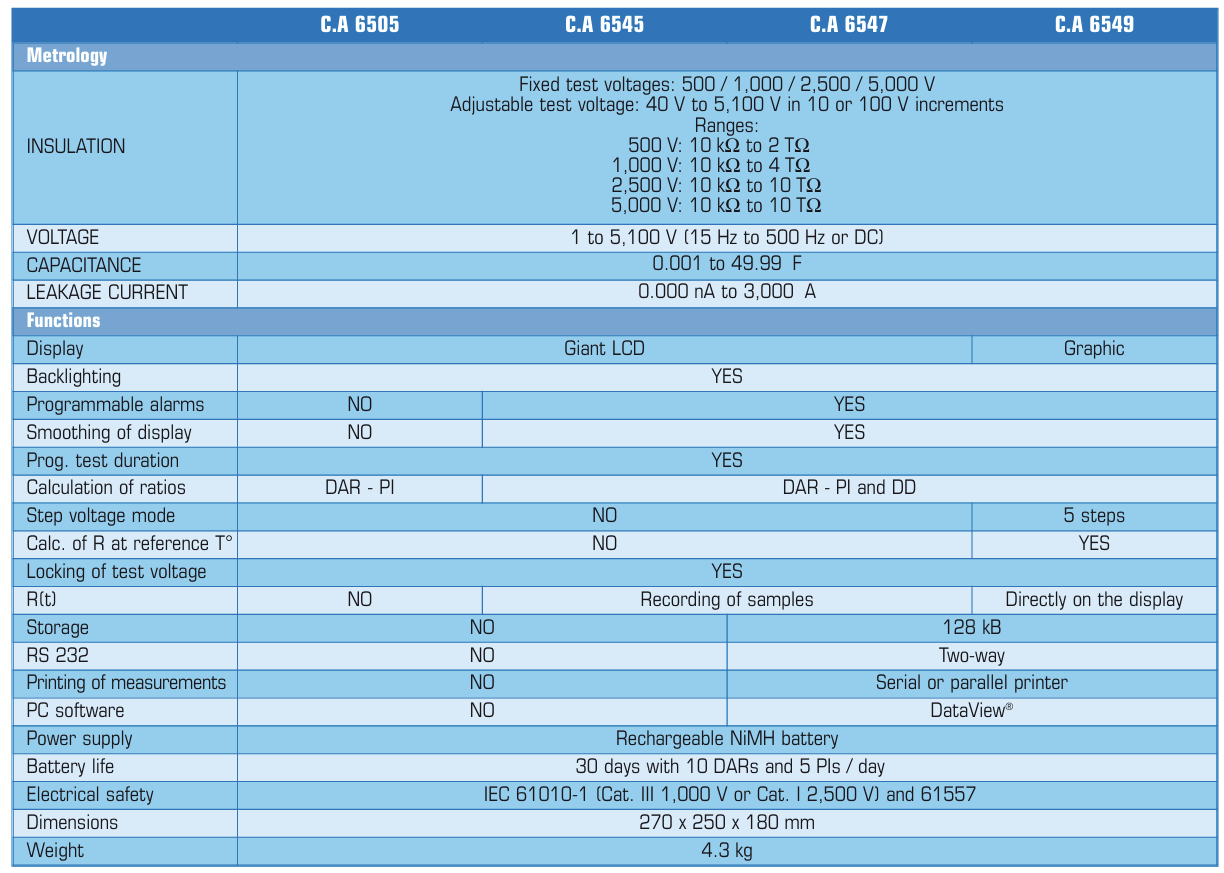

Specification
Description
The C.A 6505 5 kV megohmmeter makes industrial equipment inspection and maintenance testing particularly simple.
In its site-proof casing suitable for even the severest conditions, the C.A 6505 offers optimum accuracy and expertise for insulation testing.
As soon as it is connected, it measures the voltage, frequency, capacitance and residual current values on the installation or equipment to be tested.
Functions and specifications:
- Fixed 500/1,000/2,500/5,000 V DC test voltage or programmable from 40 V to 5,100 V DC
- Measurement range: 10 kΩ to 10 TΩ
- Programmable test duration
- Calculation of DAR & PI quality ratios
- Measurement of voltage, capacitance and leakage current
- LCD screen with bargraph
- Power supply by NiMh rechargeable battery
- Compliant with IEC 61557
- IP53 protection
- IEC 61010 1,000 V CAT III safety
- Dimensions: 270 x 250 x 180 mm / 4.3 kg
