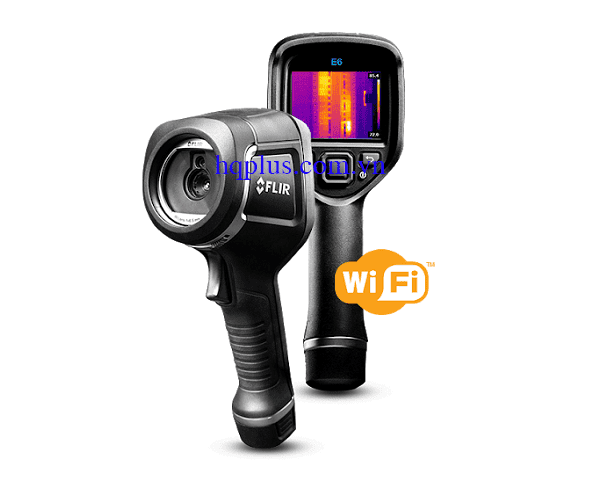

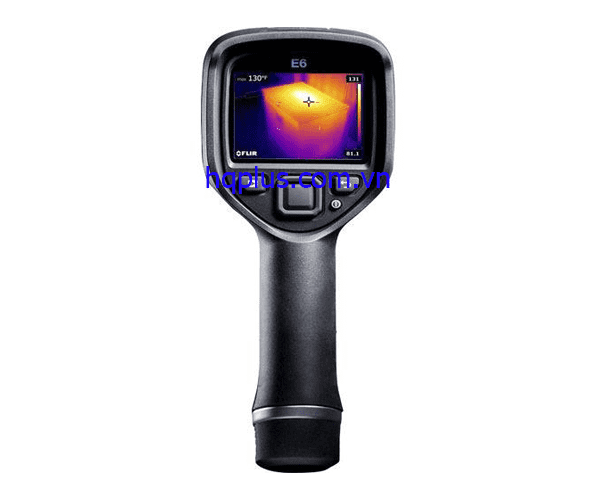

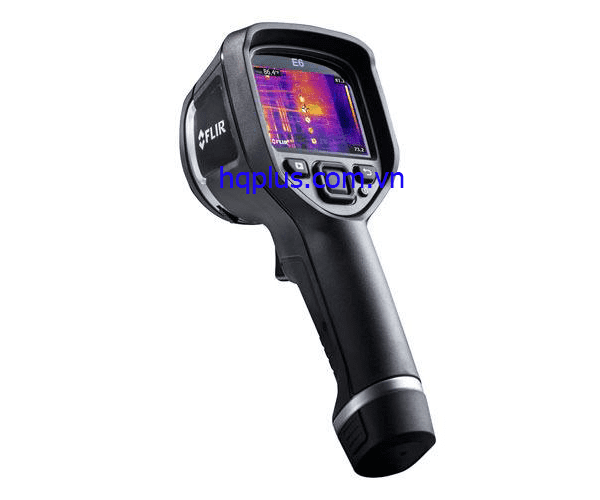

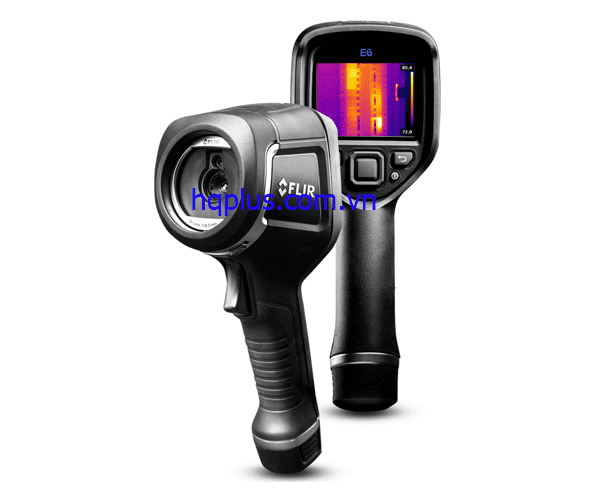

Thermal Camera FLIR Series™ E6-XT WIFI
| Image and optical data | E4 | E5-XT | E6-XT | E8-XT |
| IR resolution | 80 × 60 (4,800 pixels) | 160 × 120 (19,200 pixels) | 240 × 180 (43,200 pixels) | 320 × 240 (76,800 pixels) |
| Thermal sensitivity/NETD | <0.15°C (0.27°F) / <150 mK | <0.10°C (0.27°F) / <100 mK | <0.06°C (0.11°F) / <60 mK | <0.05°C (0.09°F) / <50 mK |
| Spatial resolution (IFOV) | 10.3 mrad | 5.2 mrad | 3.4 mrad | 2.6 mrad |
| Field of view (FOV) | 45° × 34° | |||
| F-number | 1.5 | |||
| Image frequency | 9 Hz | |||
| Focus | Focus-free | |||
| Detector data | ||||
| Detector type | Focal Plane Array (FPA), uncooled microbolometer | |||
| Spectral range | 7.5–13 µm | |||
| Image presentation and modes | ||||
| Display | 3” 320 × 240 color LCD | |||
| Image adjustment | Automatic adjust/lock image | |||
| Image modes | Thermal MSX, thermal, picture-in-picture, thermal blending, digital camera | |||
| Color palettes | Iron, Rainbow, Black & White | |||
| Measurement and analysis | ||||
| Object temperature range | –20°C to 250°C (–4°F to 482°F) | -20°C to 400°C (-4°F to 752°F) in two ranges |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
-20°C to 550°C (-4°F to 1022°F) in two ranges |
| Accuracy | ±2°C (±3.6°F) or ±2% of reading for ambient temperature 10°C to 35°C (50°F to 95°F) and object temperature above 0°C (32°F) | |||
| Spotmeter | Center spot | |||
| Area | Box with max/min | |||
| Isotherm | Above alarm, below alarm | |||
| Data communication and interfaces | ||||
| Interfaces | USB Micro: data transfer to and from PC and Mac device | |||
| Wi-Fi | Peer-to-peer or infrastructure | |||
| File format | Standard JPEG, 14-bit measurement data included | |||
| General | ||||
| Operating temperature range | -15°C to 50°C (5°F to 122°F) | |||
| Battery | Rechargeable 3.6 V Li ion battery | |||
| Battery operating time | Approx. 4 hours at 25°C (77°F) ambient temperature and typical use | |||
| Battery charging time | 2.5 hours to 90% capacity in camera. 2 hours in charger | |||
| Drop | 2 m (6.6 ft.) | |||
| Camera weight, incl. battery | 0.575 kg (1.27 lb.) | |||
| Camera size (L × W × H) | 244 × 95 × 140 mm (9.6 × 3.7 × 5.5 in) | |||
| Box contents | Infrared camera, hard transport case, battery, USB cable, power supply/charger with EU, UK, US and Australian plugs, printed documentation | |||
