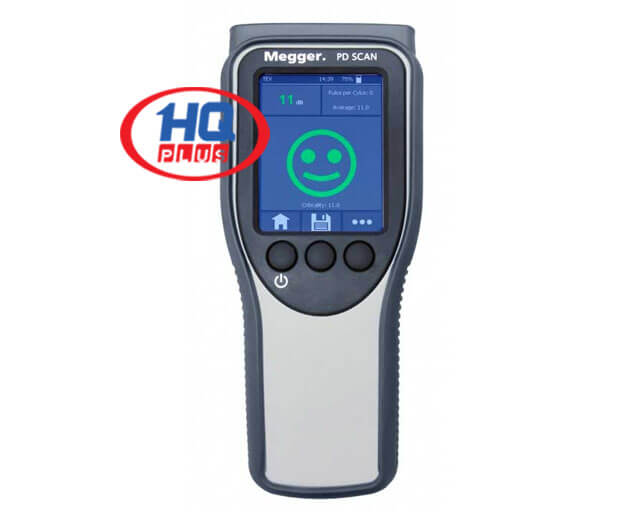

PD SCAN Handheld Scanner for PD Surveying In MV and HV plants
FEATURES
■ Three PD measurement methods in one device
■ Plug and Play; PD Scan automatically recognizes which
external sensor has been connected
■ Easy to use via soft keys and touchscreen

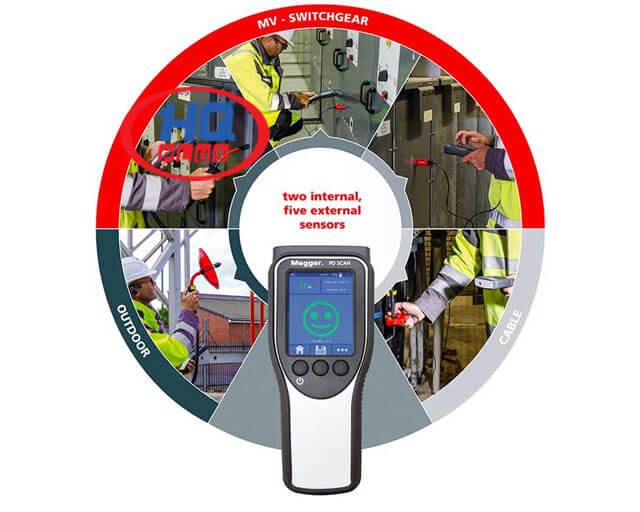

■ Universal operating range due to large variety of sensor
■ Automatic evaluation and interpretation of the results
■ Optional comfortable Bluetooth® headphones
■ Integrated camera
■ QR Code scanner for asset recognition
■ Different views and PRPD display for defect type recognition
■ Temperature and humidity measurement using supplied
sensor with storage on PD Scan itself
■ MeggerBook RE reporting software
| TECHNICAL DATA | |
| PD SCAN | |
| TEV Measurement (capacitive) | |
| Measurement range | -10 … 80 dBmV |
| Bandwidth | 2 … 80 MHz |
| Resolution | 1 dBmV |
| Accuracy | ±1 dBmV |
| Acoustic sensor | |
| Measurement range | -10 … 70 dBµV |
| Resolution | 1 dBµV |
| Accuracy | ±1 dBµV |
| Transducer centre frequency | 30, 40 and 80 kHz |
| HFCT sensor (inductive) | |
| Measurement range | -10 … 80 dB |
| Bandwidth | 100 kHz … 20 MHz |
| Resolution | 1 dB |
| Accuracy | ±1 dB/ < ±10% |
| Impedance | 50 ohm |
| Housing | Injection moulded |
| Display | 3.5 inch touchscreen, 320 x x240 pixel |
| Interfaces | Lemo (external sensors) USB type C (charging, head phone, PC) Bluetooth® |
| Control | via 3 soft keys and touchscreen |
| IP rating | IP 54 |
| Temperature Operation Storage |
-10 … 55 °C -20 … 70 °C |
| Relative humidity | 93 % at 30 °C (non-condensing) |
| Power supply Charger Internal battery Operating time Charging time |
Input voltage 90 … 264 V, 50/60 Hz Output voltage 5 VDC Li-Ion 3.6 V / 3.35 Ah > 8 hours ± 2 hours |
| Dimensions (W x H x D) PD Scan Case STD Case PRO |
220 x 80 x 30 mm 422 x 366 x 107 mm 512 x 445 x 313 mm |
| Weight PD Scan Koffer STD Koffer PRO |
420 g 940 g 3400 g |
