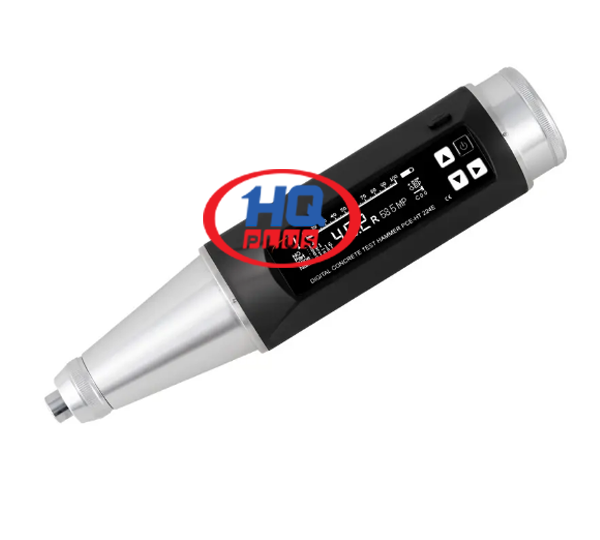

Hardness Tester PCE-HT 224E with Digital Display
Hardness Tester PCE-HT 224E with Digital Display
Mechanical concrete hardness tester with OLED / Measuring range 10 ... 100 N/mm² (1500 ... 8500 PSI or lbs/in²) / Built-in battery for mobile use / Test load 2.207 J / For measuring the quality of concrete surfaces

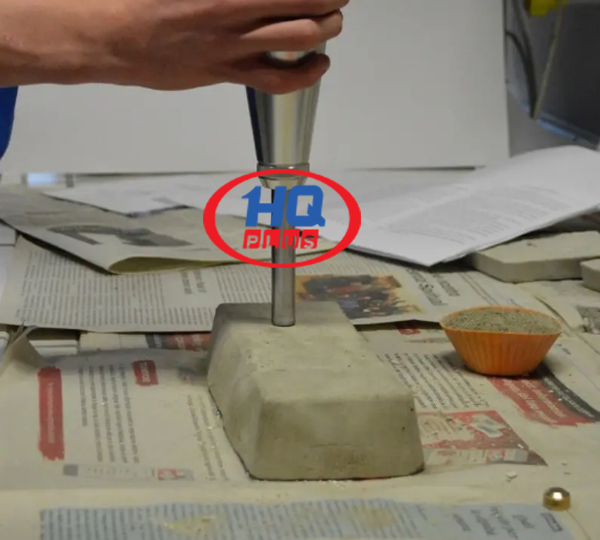

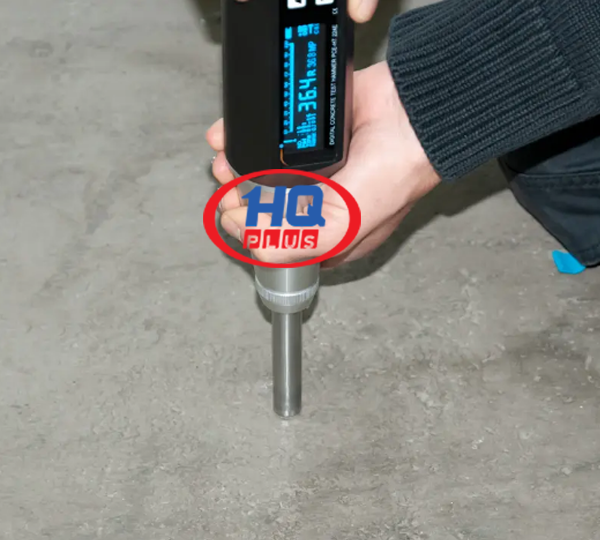

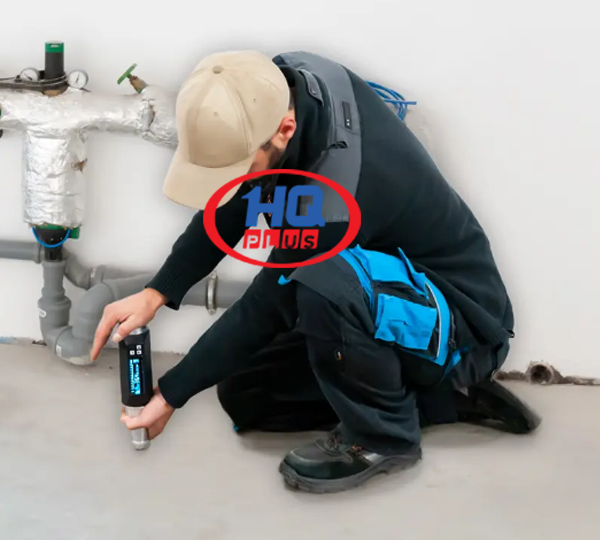

The Hardness Tester is a measuring tool for testing the strength of concrete. The Hardness Tester measures strength according to the Schmidt principle. According to this measurement method, the quality of concrete can be measured with the Hardness Tester. Thus, the Hardness Tester finds its essential application in the construction and in the construction sector. The Hardness Tester is also suitable for measuring the hardness of rolled paper. The built-in mechanism on the hardness tester always ensures the same impact energy of 2.207 Nm.

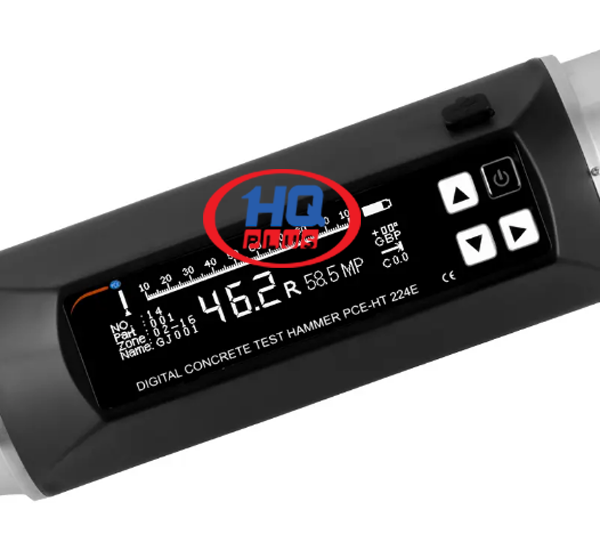

The Hardness Tester displays measurements Rebound Value and can display force in PSI, MPa, kgF/cm², or N/mm². The Hardness Tester can be setup to measure at test angles of downward(-90°), downward(-45°), horizontal (0°), upward(45°), or upward(90°).
HIGHLIGHTS
- OLED for reading the measured values
- USB interface for connection to a PC
- Measuring range 10 ... 100 N/mm², 1500 ... 8500 PSI or lbs/in²
- Measurement of the hardness of concrete
- Data storage for later analysis
- Rechargeable battery for mobile use
SPECIFICATION
| Measuring range | 10 ... 100 N/mm² / 1500 ... 8500 PSI or lbs/in² |
| Accuracy | ± 0.1 R |
| Display | OLED |
| Nominal kinetic energy | 2.207 Nm, 0.225 kgm |
| Interface | micro USB |
| Storage | 1,000 data units with 256 measurements each |
| Operating conditions | -40 ... 60°C / -40 ... 140°F |
| Power supply | 3.7V Li-ion battery |
| Power supply (mains adapter) | Primary: 100 ... 240V AC, 50/60 Hz |
| Secondary: 5V DC, 1 A | |
| Dimensions | 280 x 75 x 60 mm / 11 x 3 x 2.4 in |
| Weight | About 1.2 kg / 2.6 lbs |
DELIVERY SCOPE
1 x Hardness Tester PCE-HT 224E
1 x Mini USB cable

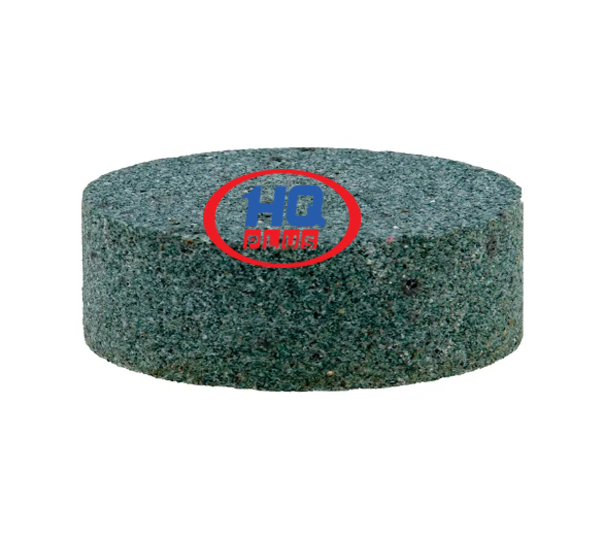

1 x Emery stone

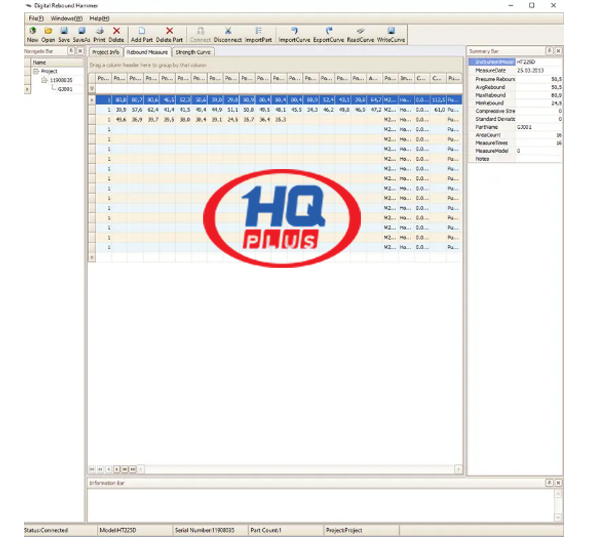

1 x Software in the download area
1 x Charger
1 x Transport case
1 x Instruction manual
