Videoscope PCE-IVE 320
PCE-IVE 320 Videoscope with Telescoping Pole

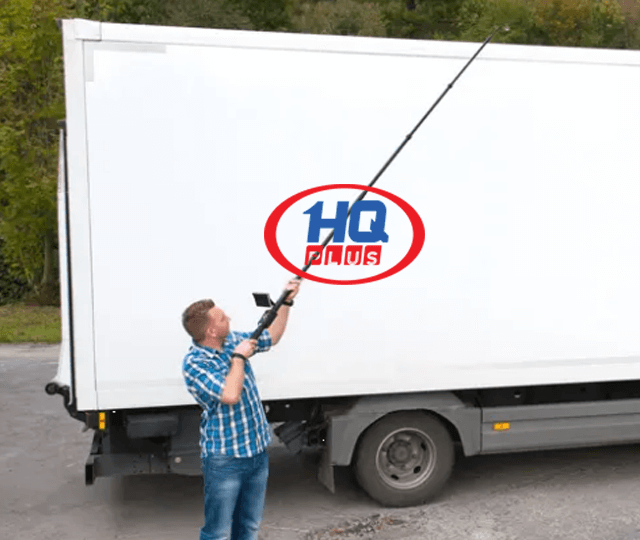

Industrial endoscope, videoscope or borescope on an extension rod / Ideal for gutter, chimney and home inspections as well as under-vehicle security and tactical use

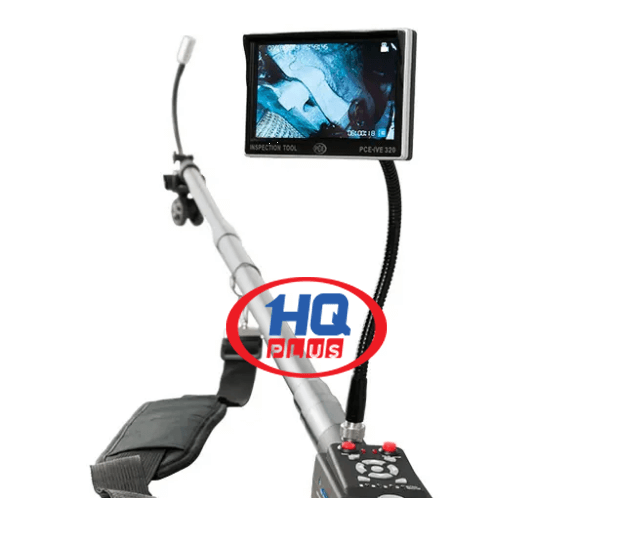

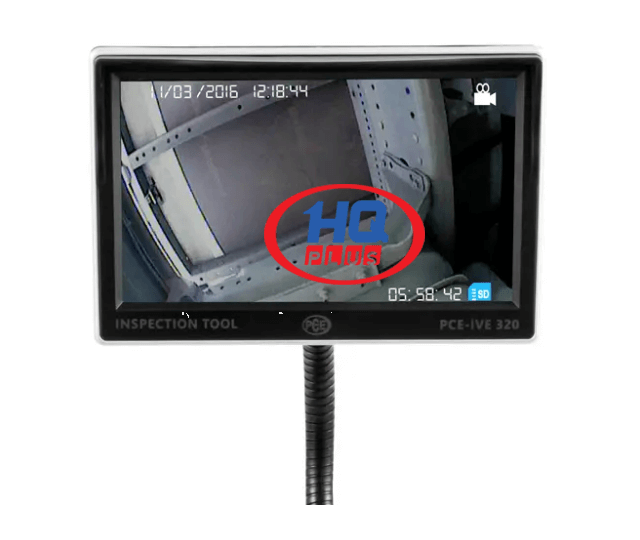

PCE-IVE 320 is the ideal solution for inspecting hard-to-reach places. This borescope, inspection camera, videoscope or industrial endoscope comes with a rigid telescoping pole that extends up to 2.3 m (7.6 ft) in length (3 m / 9.8 ft long total with camera connection). Plus, the borescope's 0.3 megapixel camera has a 23 mm (0.91 in) diameter flexible head with microphone and 12 white LEDs offering adjustable brightness. A 12.7 cm / 5" LCD monitor with 800 x 480 pixel resolution allows for live viewing. For video recording, the PCE-IVE 320 accommodates SD memory cards from 2 ... 32 GB. An SD card reader is included in the delivery contents.

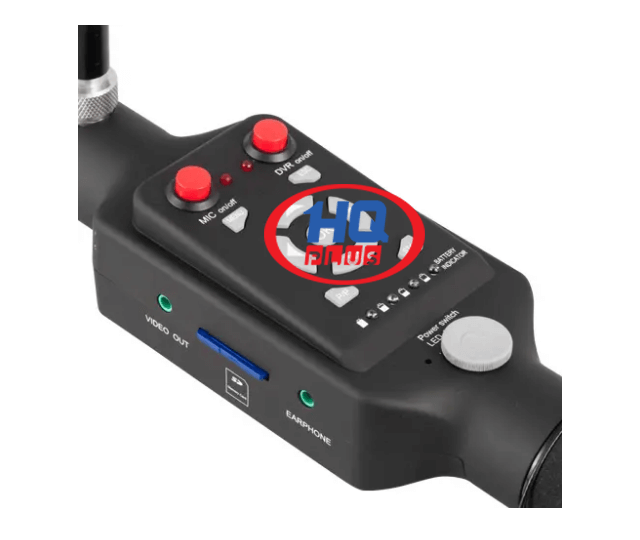

PCE-IVE 320 allows quick and easy viewing, monitoring and diagnosis of inaccessible areas of machines, engines and equipment. The borescope is a useful tool for recognizing potential hazards or broken parts. The device's flexible camera head can be bent to capture images at any angle. Includes wheel attachment for under vehicle inspection. The brightness of the LEDs on the camera head can be conveniently adjusted by means of a thumb wheel located on the handle of the telescoping pole. The borescope also features a microphone for obtaining audio (headphone included).
***Not for medical use***
HIGHLIGHTS

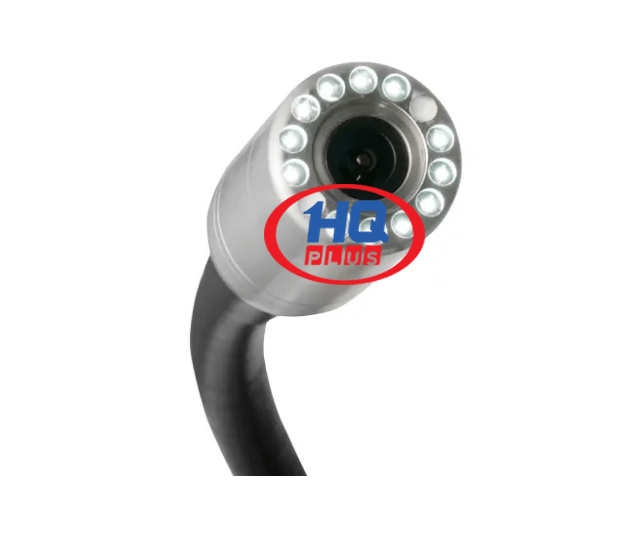

- 23 mm (0.91 in) diameter flexible camera head

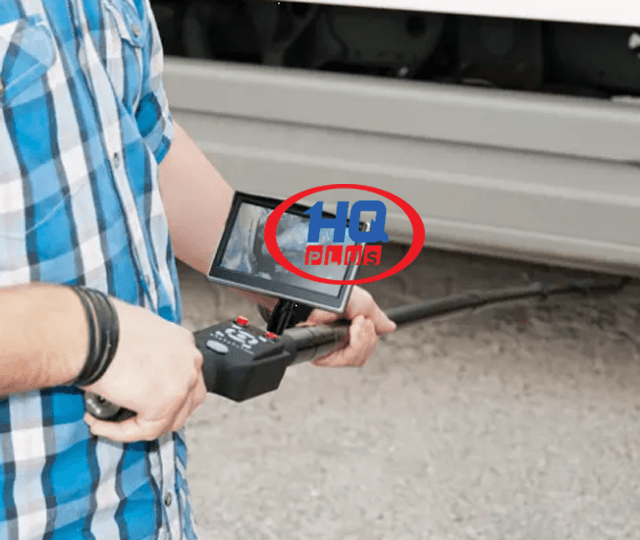

- LCD monitor
- 12 LEDs offer adjustable brightness

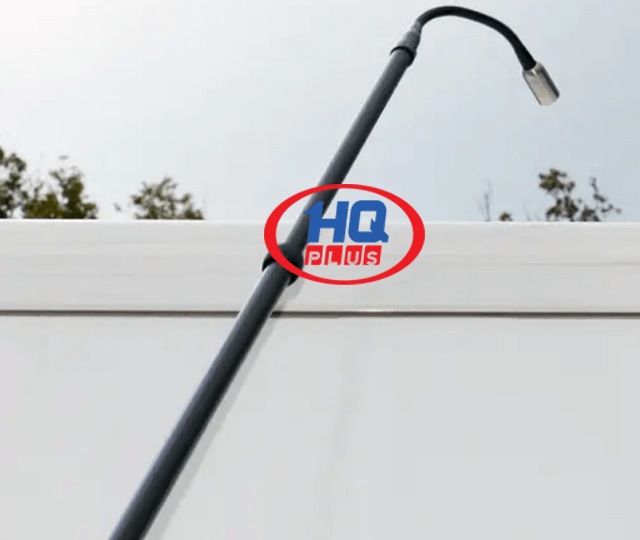

- Telescopic pole extends up to 2.3 m (7.6 ft) in length (3 m / 9.8 ft long total with camera connection)
- Video recording capability
- SD card memory
- Microphone for obtaining audio (headphone included)

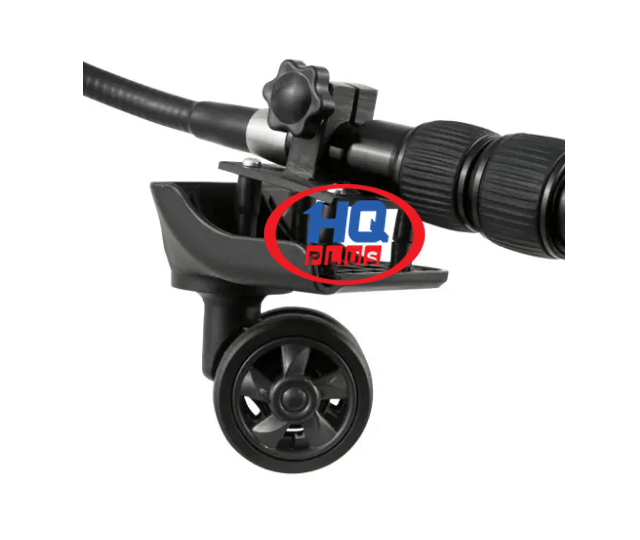

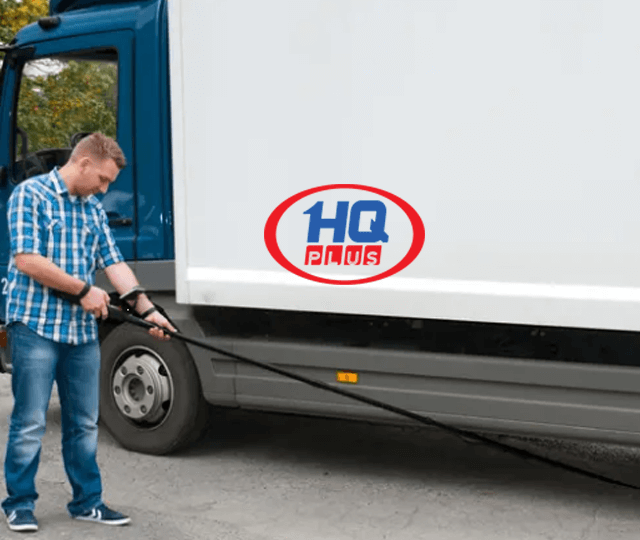

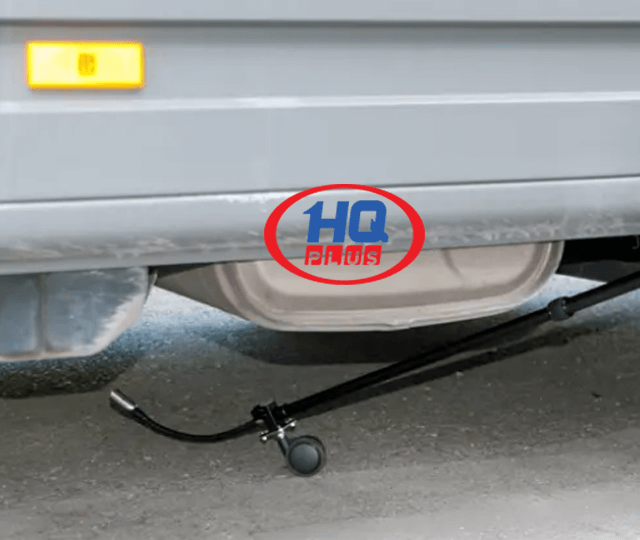

- Includes wheel attachment for under vehicle inspection
- Spare battery to allow all day operation
SPECIFICATION
| Camera | |
| Camera head | 1/4 CMOS |
| Pixel | 0.3 Megapixel |
| Lighting | 12 x LEDs (white) |
| Camera length | 320 mm / 12.60 in |
| Camera diameter | 23 mm / 0.91 in |
| Monitor | |
| LCD | 12.7 cm / 5" screen |
| Full dimensions | 130 x 80 x 10 mm / 5.12 x 3.15 x 0.39 in |
| Resolution | 800 x 480 pixels |
| Telescopic pole | |
| Maximum length | 2.3 m / 7.6 ft |
| Minimal length | 0.9 m / 3 fg |
| Rechargeable battery | |
| Battery capacity | 1500-mAh |
| Output voltage | 12V DC, 500-mA, 5-hour runtime |
| Battery charger | |
| Input voltage | 100 ... 240V AC, 50 / 60 Hz |
| Output voltage | 12V DC, 500-mA, 4-hour charge time |
| Video recording | |
| Output | 704 x 576 (PAL) |
| Video format | MPEG-4 |
| Recording format | ASF |
| Memory | 2 ... 32 GB SD card |
| General specifications | |
| Overall length | Maximum 3 m / 9.8 ft |
|
Operating conditions Weight |
-20 ... 50°C / -4 ... 122°F 1.5 kg / < 1 lb |

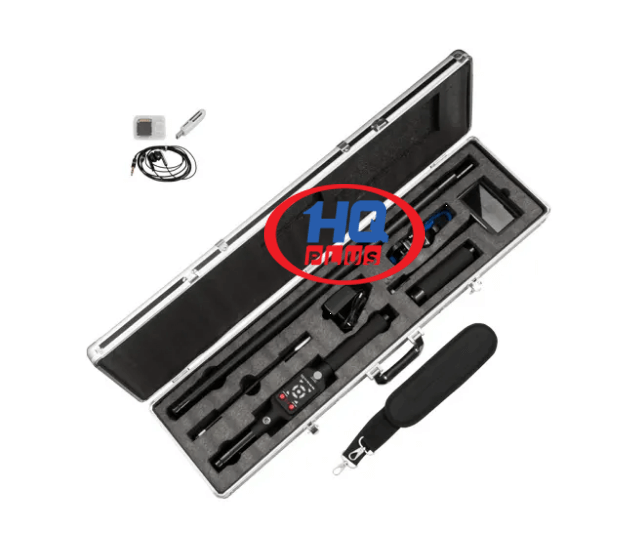

DELIVERY SCOPE
1 x Videoscope PCE-IVE 320
1 x Flexible camera head with microphone
1 x Telescoping pole
1 x Rotary coupling
1 x Handle
1 x Carrying strap
1 x Headphone
1 x Operating element
1 x Guide roller with mounting fixture
1 x LCD monitor
1 x SD card
1 x SD card reader
2 x Rechargeable battery
1 x Battery charger
1 x User manual
